T4熱處理爐 (T4 treatment)

說明:

使用目的:AC件之退、淬火

歡迎洽詢訂製!

規格尺寸:

使用溫度 均溫性能 加熱機制 輸送 批次式 爐氣氛
Max 600 ±5~8 熱風 油壓絞盤 可選用 大氣

可客製不同的大小

T4 Aluminum Heat Treatment

Designed for batch operation this furnace incorporates a charge loading and unloading system. This furnace is fully automated to ensure consistency of the components

Features

  • Transfer Bogie is consists of Steel structure, charge, basket and quench tank (Driven via a geared motor)
  • Furnace type: Drop-Bottom chamber
  • Cooling system: recirculation pump and air-cooled heat exchanger

Applications

Specifications

  • Maximum working temperature: 800℃
  • Temperature Uniformity: ±3℃
  • Heating system: Electrical resistance
  • Quenching time: 3~6 sec

Operation Sequence:

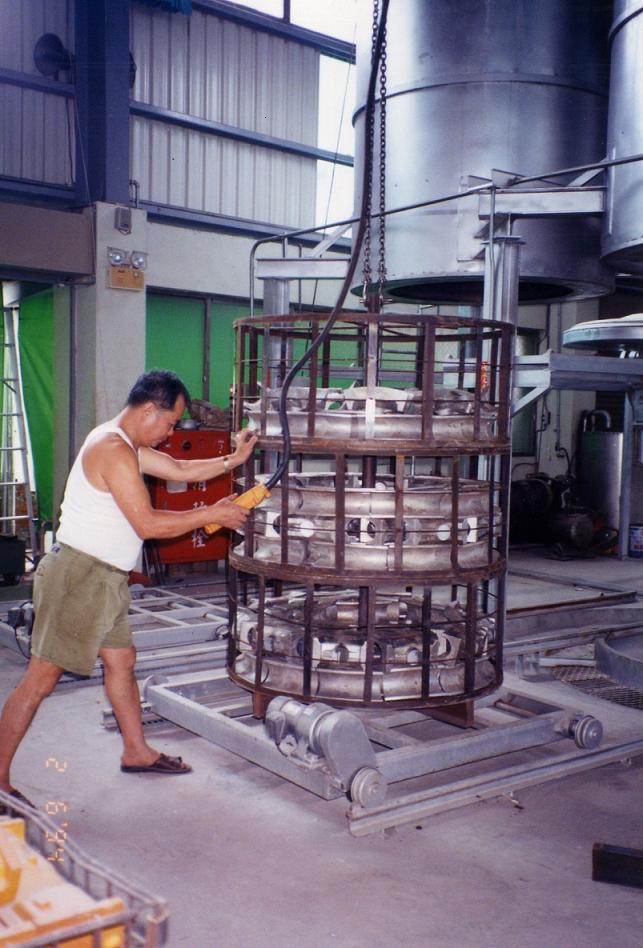

  • Loading/ Unloading position

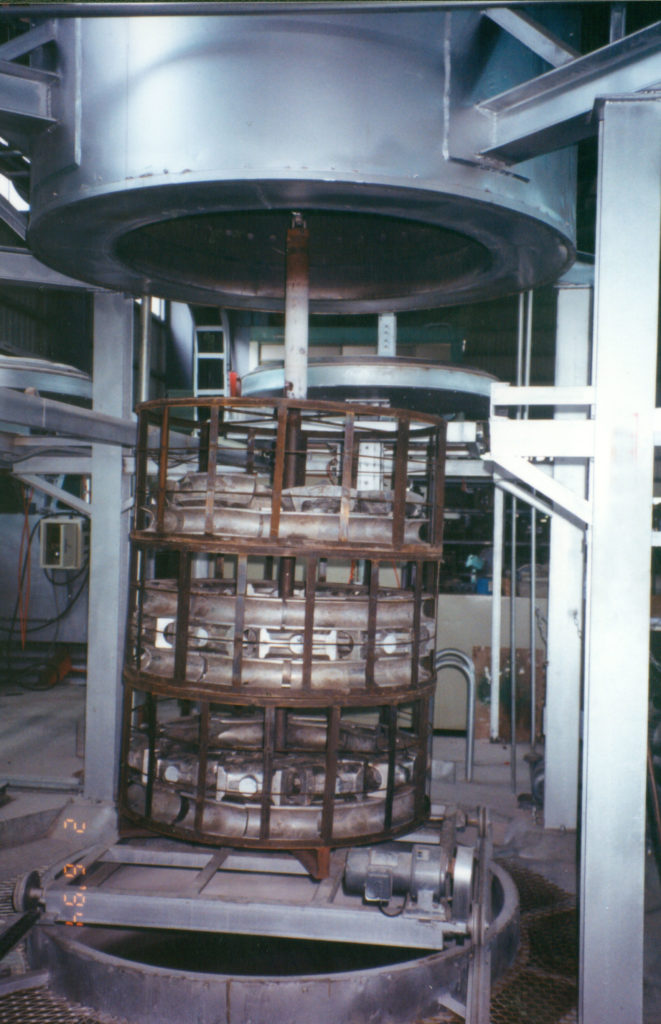

  • Transfer bogie transfers and positions the charge underneath the Furnace chamber.

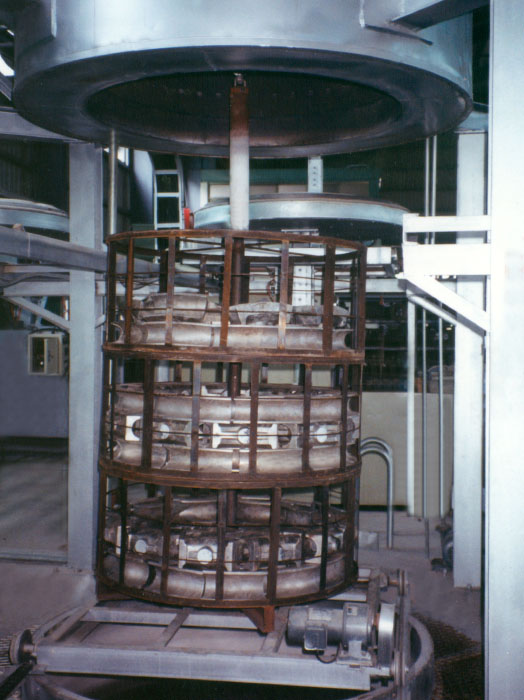

  • The charge and its basket are then winched into position in the Furnace heating chamber.

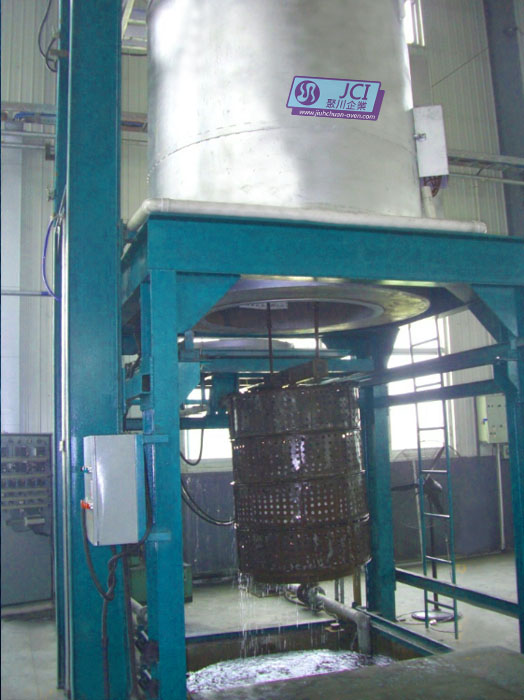

  • On completion of the heating cycle the transfer bogie travels to position the quench tank immediately underneath the Furnace heating chamber, in readiness to receive the charge basket.
  • After the quenching cycle the transfer bogie then travels to its original position.
